OA Cattle Alleys

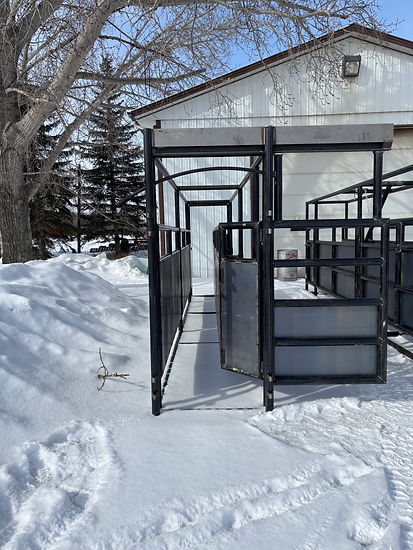

OA Standard 20' Adjustable Alley
The Standard alley is built from new 2" schedule 40 pipe. It is 20' long, 6.5' high, and the width is adjustable from 29" down to 18". The alley can be built to work from either the left or right side. 14ga sheet steel is 3'.
The working side features 2 large gates which are bolted shut to reduce noise, and a 24" latched gate at the front that swings in and doubles as a palp cage if needed. All Hinges are greasable.
A pull-to-open rolling gate comes standard at the rear of the alley. Rollers are greasable for extended life.
Standard alley's are sandblasted and painted with a primer+topcoat.
OA Custom Alleys
We are happy to custom configure the alley to fit your specific needs. Following the basic design of the standard alley, options can be fitted on including a push-to-open sliding gate, no backs, and jump bars.
Overall dimensions such as length, as well as gate sizes and placement can all be built to your specs.
Contact us to discuss your needs and to get a quote.
